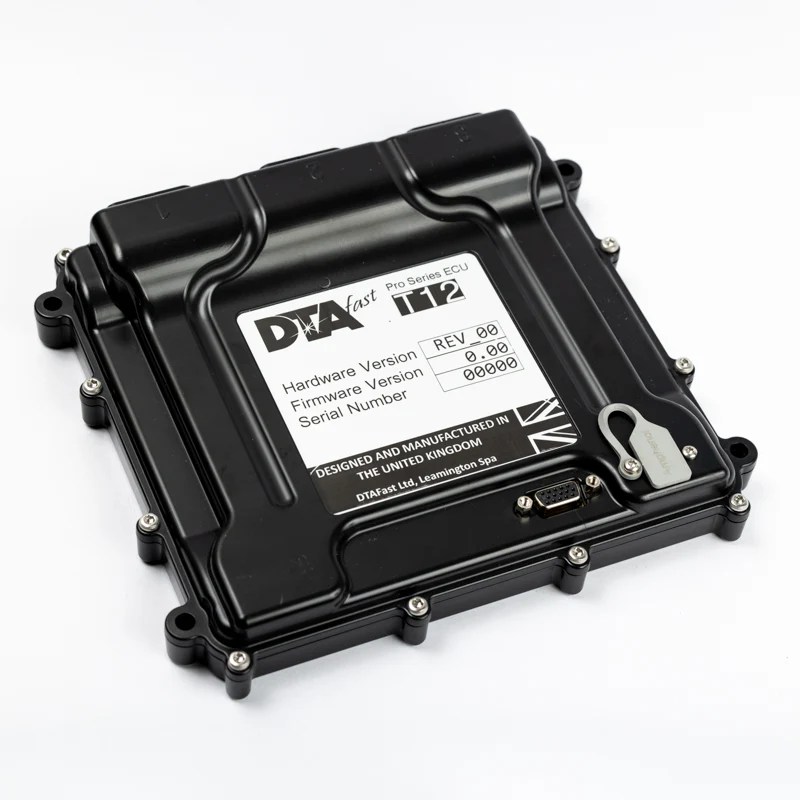

DTA T12 ECU

The T12 is ideal for more advanced V engines. It can run up to 12 cylinders fully sequentially, features quad variable cam control, paddle shift and has more I/O than you can shake a stick at! T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to 32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software. Product features T12 Cylinders 12 Sequential Ignition 12 Sequential Fuel 12 Total Inputs 35 Total Outputs 40 PWM Outputs 12 H-Bridge Outputs 0 Digital Inputs 9 Thermistor Inputs 3 Analogue Inputs 16 Wheel Inputs 4 Fuelling Yes Ignition Yes Wideband Lambda dual Knock Sensor Support No Fly-by-Wire Control No Paddle Shift Yes Pit Limiter Yes Idle Control Yes Launch Control Yes Traction Control Yes Traction Wet/Dry Yes Flat-Shift Yes Boost Control Yes Simple Cam Control Yes Variable Cam Control quad CAN Bus dual IP Rating IP67 Case Moulded Plastic Dimensions 188x176x25-42mm Weight 950g Upgradeable To T12
